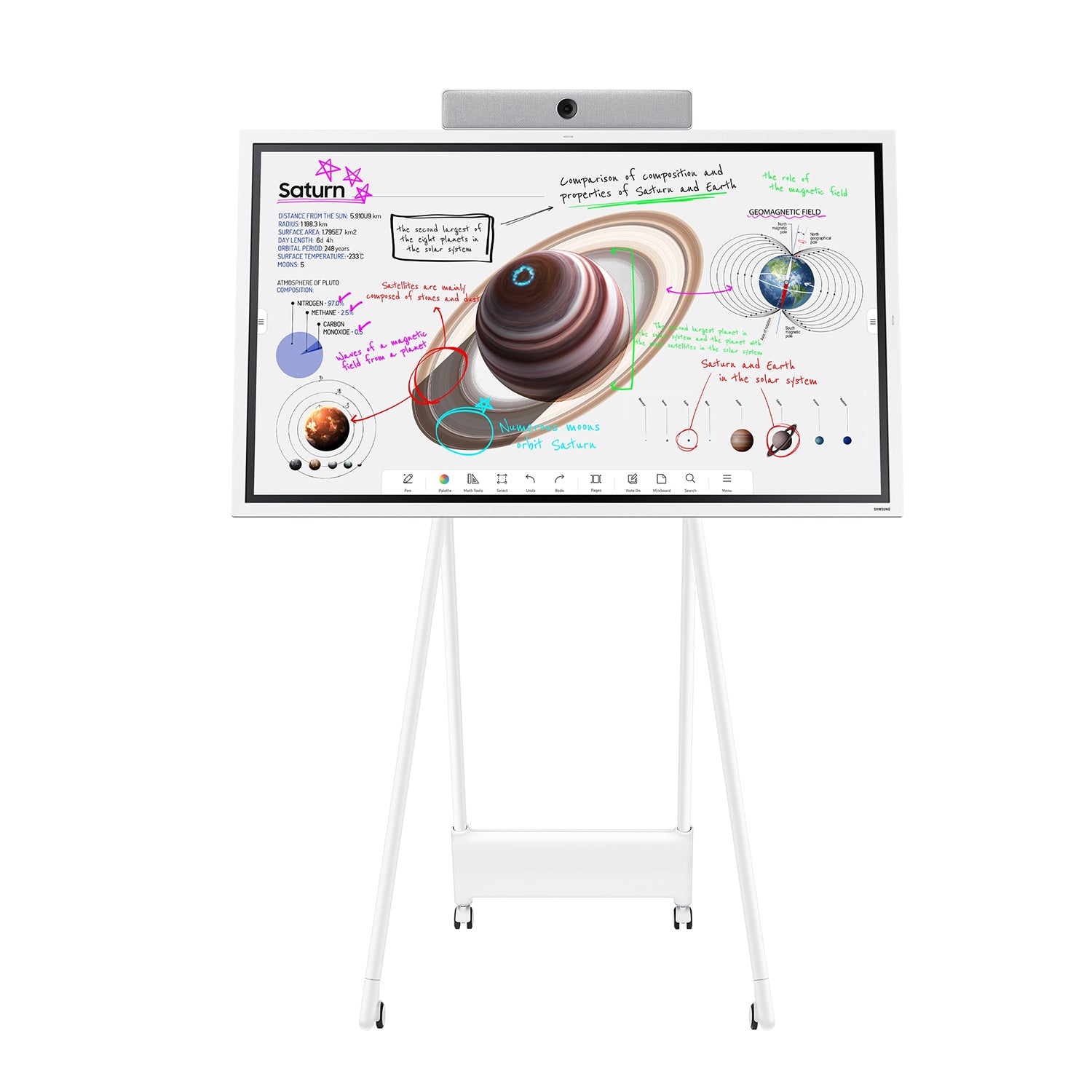

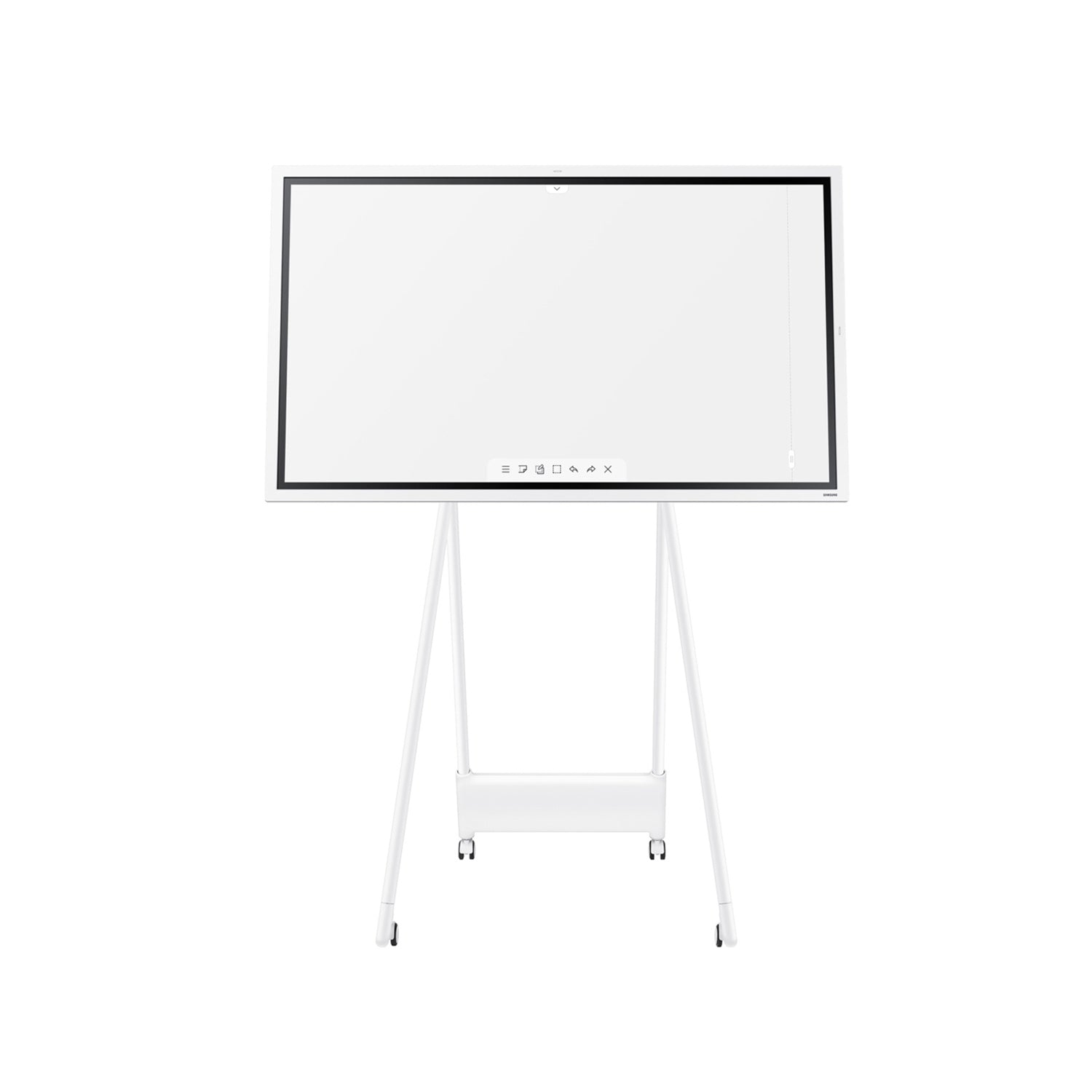

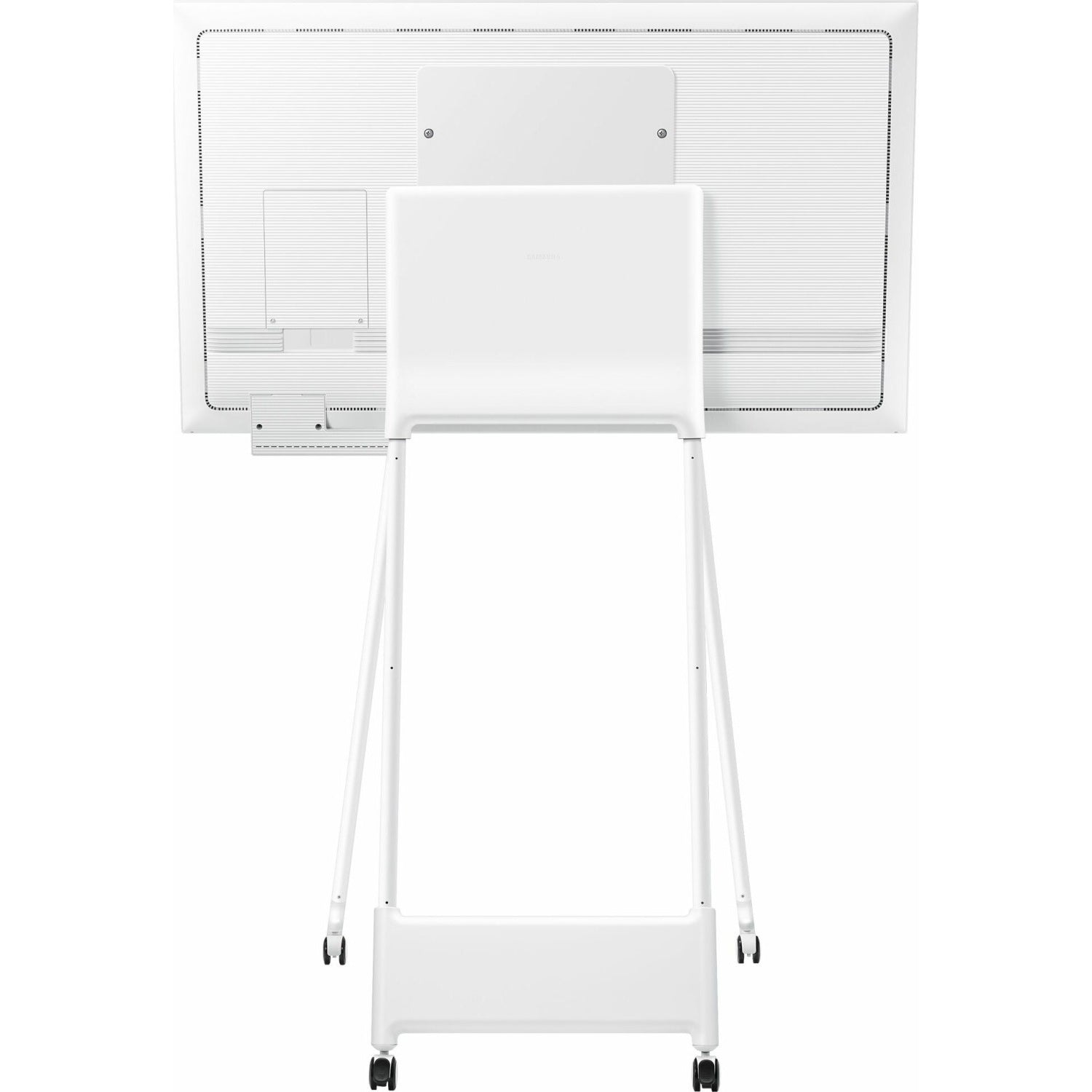

Samsung WM55R - All-in-One Digital Flipchart for Business - Touch Smart Screen & board

Key Features

Draw, Write & Inspire

• Pen Mode Notation

  • Experience a smooth and familiar pen-to-paper writing experience.
  • Available in various colors, styles, and widths.
  • Supports up to 4 simultaneous users, using any object as a writing tool.
  • Quick erase function with finger or palm swipe.

• Creating a Masterpiece

  • Brush Mode Notation
    • Recognizes a wide range of thicknesses.
    • Supports water and oil painting modes for different styles and textures.
    • Provides a full, vibrant color palette with flexible color mixing.

• Write on Any Background

  • Annotation can be done on any background source.
  • Use the note layer button to write smoothly without affecting the original content.

• Flexible Image Editing

  • Selection tool for moving, cropping, capturing, and editing images.
  • Merge images to the roll with one click for further editing or erasing.

Specifications

Display

• Touchscreen: Yes
• Display Technology: LED
• Diagonal Size: 139.7 cm (55")
• Resolution: 3840 x 2160 pixels
• Brightness: 350 cd/m²
• HD Type: 4K Ultra HD
• Response Time: 8 ms
• Contrast Ratio: 4000:1
• Viewing Angle: 178° (Horizontal & Vertical)
• Pixel Pitch: 0.315 x 0.315 mm
• Vertical Scan Range: 48 - 75 Hz
• Horizontal Scan Range: 30 - 81 kHz

Ports & Interfaces

• USB Ports: 1
• Wi-Fi: Yes
• Ethernet LAN: Yes
• HDMI Ports: 2
• Ethernet LAN (RJ-45) Ports: 1

Audio

• Built-in Speaker(s): Yes

Design

• Product Design: Digital signage flat panel
• Placement Supported: Indoor
• Orientation: Horizontal/Vertical
• Color: White
• Panel Mounting Interface: 400 x 400 mm
• VESA Mounting: Yes

Performance

• Purpose: Universal
• Operating Hours: 16/7

Power

• Power Consumption (Typical): 154 W
• Power Consumption (Standby): 0.5 W
• AC Input Voltage: 100 - 240 V
• AC Input Frequency: 50/60 Hz

Weight & Dimensions

• Width: 1297.4 mm
• Depth: 59.9 mm
• Height: 768.2 mm
• Weight: 28.2 kg

Packaging Data

• Package Width: 1464 mm
• Package Depth: 190 mm
• Package Height: 915 mm
• Package Weight: 35.2 kg
• Remote Control Included: Yes
• Cables Included: AC

Operational Conditions

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 10 - 80%

Additional Features

• Wi-Fi: Yes
• Display Technology: LED
