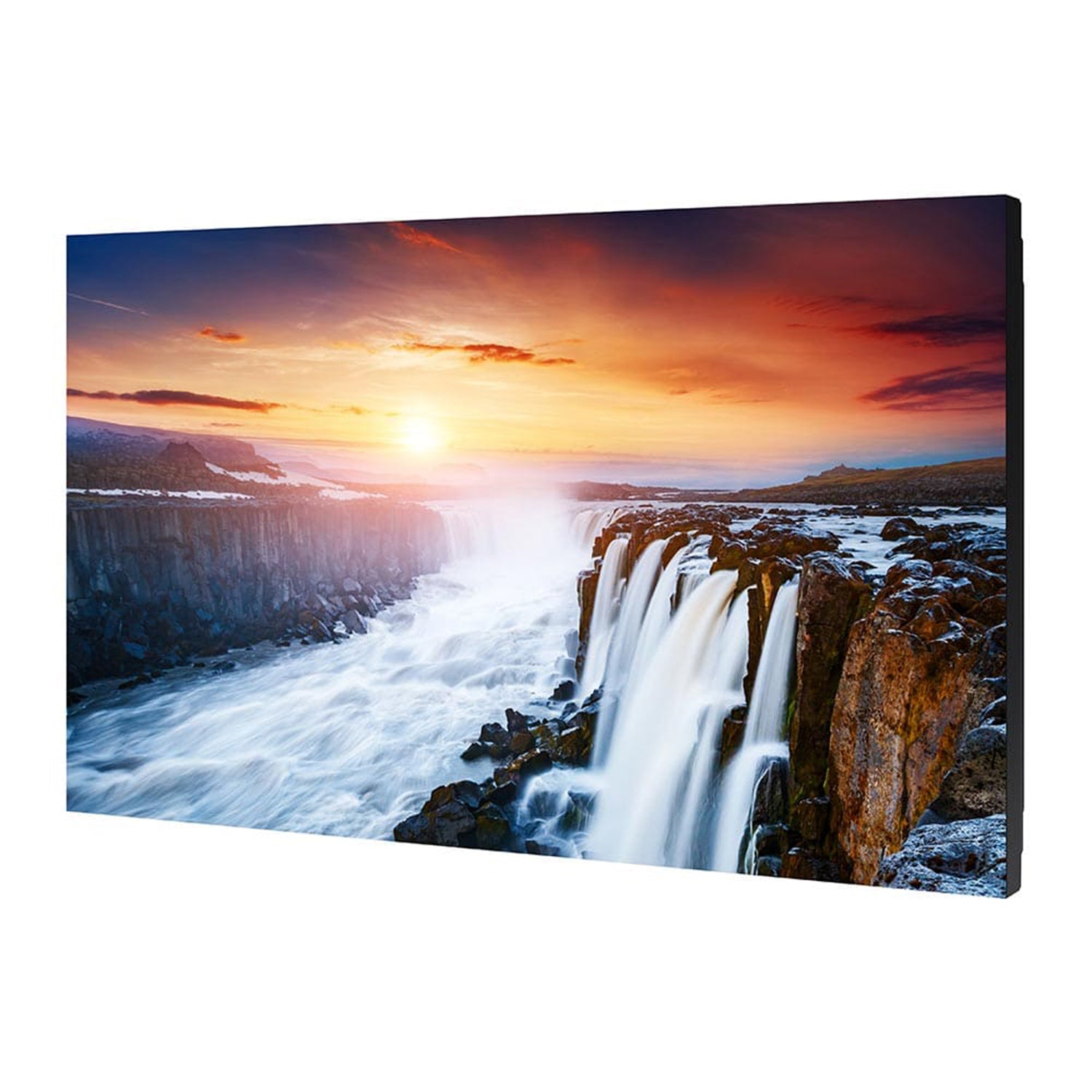

VH55R-R'' Narrow Framed Video Wall- Manageable Video Display

SKU: VH55R-R
Vorrätig - 100 Artikel verfügbar
Normaler Preis $2,600.00
Sie können uns für Ihre Bestellungen und Fragen kontaktieren. +90543 456 2614
Alle Ihre Bestellungen werden per schneller Luftfracht mit UPS EXPRESS Shipping versendet
Ihre Bestellungen werden innerhalb von 3 Werktagen vorbereitet und versendet.
Customs clearance in your country is not the seller's responsibility.

VH55R-R Smart Signage

Seamless Video Wall: Extraordinary Thin Bezels

Extraordinary Thin Bezels

The VHR-R display, designed with 0.44 mm thick bezels, offers an impressive experience. This thin bezel is only 0.44 mm thick, making it possible for the screen to adapt to any work environment. By leveraging Samsung's wide viewing angles and advanced picture enhancement technologies, it ensures that screen visuals are presented flawlessly and impressively.

Nearly Invisible 0.44 mm Bezel

This extraordinary 0.44 mm bezel features a design with a bezel-to-bezel depth of just 0.88 mm. This feature allows content to be presented as a single seamless image, eliminating any potential barriers and offering a more immersive viewing experience. With this design, the content on the screen appears nearly independent of the bezels between them.

View Content from Any Angle

The wide-angle viewing feature of the VHR-R display allows viewers to easily see the content even if they are not directly in front of the screen. Regardless of the screen's layout and position, viewers can receive clear and accurate information. This feature ensures that the screen provides high image quality from every angle.

Image Enhancement Technology

Samsung's powerful image enhancement technology ensures that all content is vibrant and clear. Picture Enhancement mode improves the image by adjusting color saturation and contrast gamma curve. The Black Equalizer mode brightens dark images, making details easier to see. These technologies allow the screen to deliver perfect images under all conditions.

Modern, Slim Design

The VHR-R screens have an advanced design aesthetic with an ultra-slim depth of less than 70 mm. This design allows the screen to save space and create a clear and modern appearance in retail or other public spaces. Thanks to its slim design, the screen perfectly adapts to the space aesthetically.

24/7 Striking Images

With a brightness of 700 nits, the screen allows businesses to present information more clearly 24/7, offering an impressive and stunning image presentation experience. The screen's anti-glare panels provide better visibility regardless of ambient light, ensuring that critical information is always visible. This feature guarantees high performance of the screen under any circumstances.

Convenient Mobile Calibration

Samsung's Color Expert Pro Mobile Solution provides quick and easy video wall calibration using a mobile phone camera. Thanks to the intuitive interface of this solution, even non-expert users can adjust the white balance of a 5x5 video wall simultaneously without the need for additional equipment. This feature makes the calibration process simple and accessible.

Advanced UHD Presentation

Samsung video walls offer an impressive UHD viewing experience with minimal effort. With the daisy chain design using DisplayPort 1.2 and HDMI inputs, the VHR-R screen can project UHD content on multiple screens in a maximum 5x5 configuration. This feature, which does not require an external graphics card or UHD distributor, allows users to display UHD content seamlessly.

Technical Specifications

  • Diagonal Size: 55"
  • Panel Type: Direct LED
  • Resolution: 1,920 x 1,080
  • Pixel Pitch (HxV): 0.63 x 0.63
  • Brightness (Typical): MAX 700 cd/㎡
  • Contrast Ratio: 1100:1
  • Viewing Angle (H/V): 178/178
  • Response Time: 8 ms
  • Color Gamut: 72%
  • Haze: 28%
  • H-Scanning Frequency: 57.3kHz ~ 70kHz
  • Maximum Pixel Frequency: 78MHz
  • V-Scanning Frequency: 47Hz ~ 63Hz
  • Dynamic Contrast Ratio: 30,000:1

Connections

  • HDMI Input: 2
  • DP Input: 1
  • DVI Input: 1
  • Internal Channel Selector: No
  • USB: 1
  • Internal Component: No
  • Internal Composition: No
  • IR Input: Yes
  • HDBaseT Input: No
  • Audio Input: Yes
  • Audio Output: Stereo Mini Jack
  • Video Output: Yes
  • Power Output: No
  • RS232 Input: Yes
  • RS232 Output: Stereo Mini Jack
  • RJ45 Input: Yes
  • RJ45 Output: No

Power

  • Power Supply: AC 100 - 240 VAC (60 / 50Hz)
  • Power Consumption (On Mode): 270 W
  • Power Consumption (Sleep Mode): 0.5 W

Dimensions

  • Set Size (WxHxD): 1211.0 x 681.7 x 69.9 mm
  • Package Size (WxHxD): 1414.0 x 844.0 x 257.0 mm
