VM55B-U'' Framed Video Wall- Manageable Video Display

VM55B-U Smart Signage

Always On, Ultra-Thin Bezels Save Space

Experience immersive and reliable viewing 24/7 with Samsung's VMB-U series displays. These displays feature a slim depth and 500 nits brightness, ensuring that images look perfect and text is more readable in a variety of environments, from shopping malls and lobbies to meeting rooms and control rooms. The thin-bezel design maximizes screen efficiency while helping to save space.

Transform Any Space with High-Impact Visuals

Thin Design and Flexible Installation Options

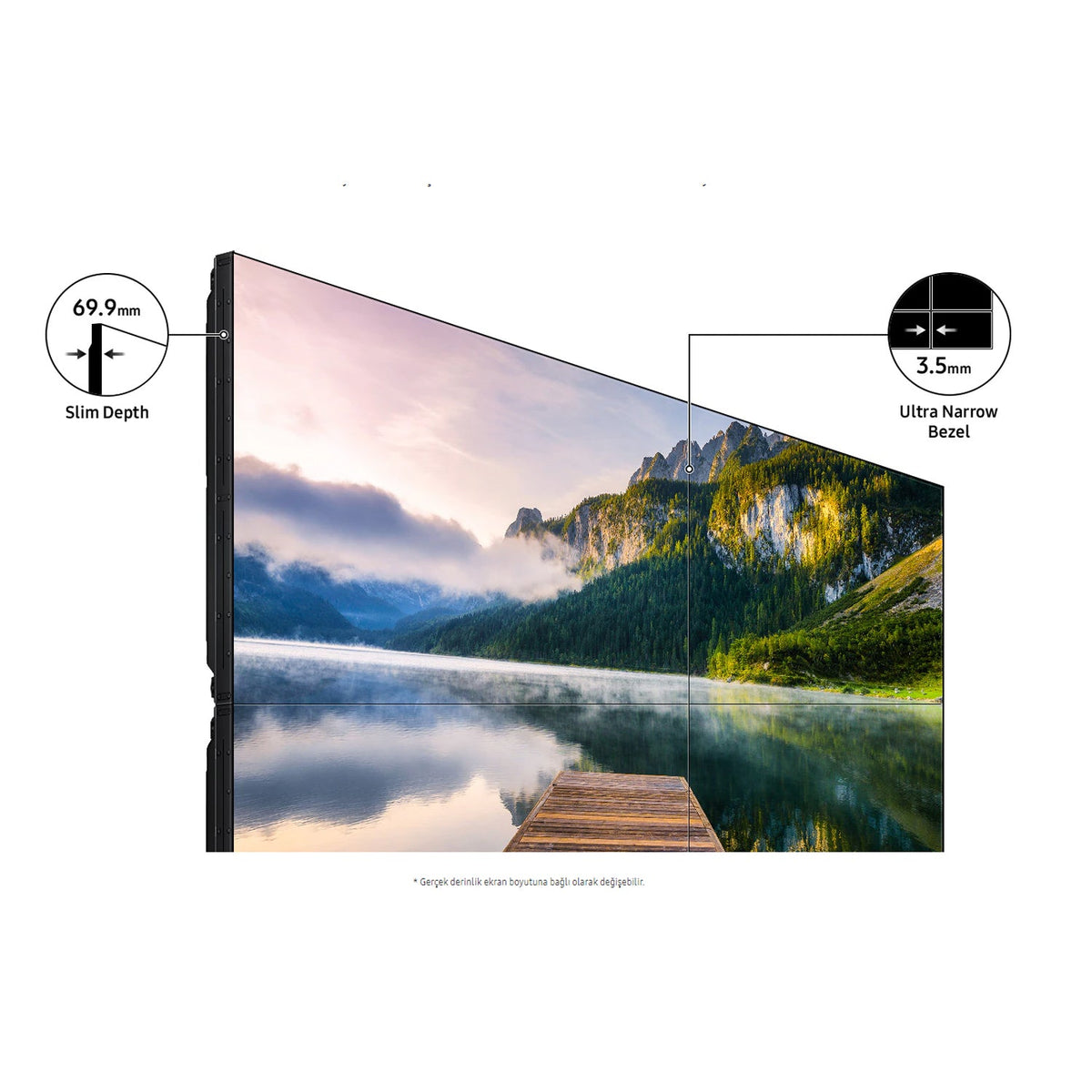

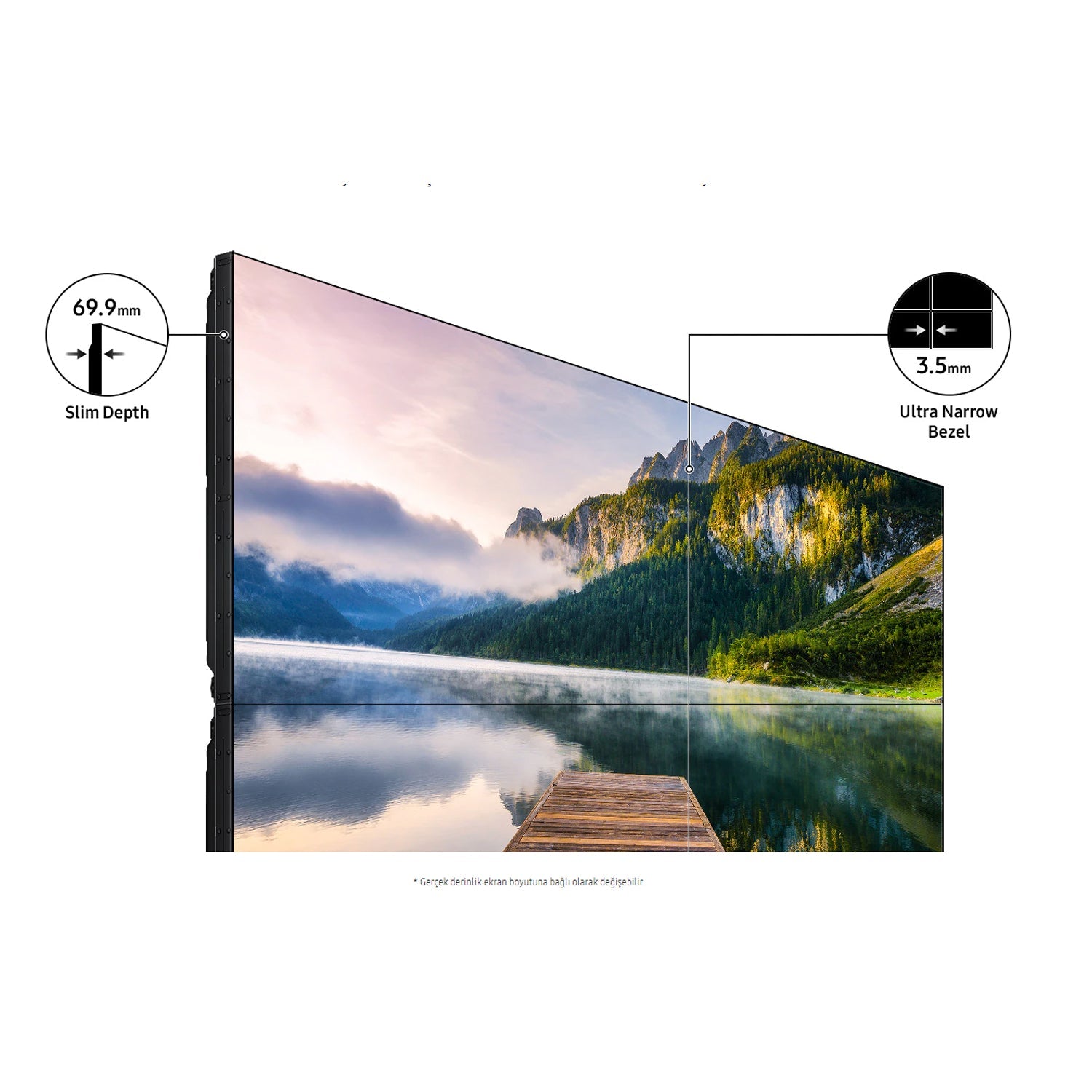

The VMB-U series offers flexibility in installation with a cabinet depth of only 69.9 mm and an ultra-narrow bezel-to-bezel width of 3.5 mm, providing a seamless picture. This design offers endless possibilities for those looking to create captivating visual experiences and ensures a striking appearance in any space. This display is the ideal solution for transforming your space with a sleek and minimalist aesthetic.

View Content from Any Angle

Wide Viewing Angles

The display's wide viewing angles ensure that viewers can easily see content even if they are not directly in front of the screen. This feature delivers sharp details and vibrant colors from any location, offering all viewers a superior visual experience. Keep your content clear and vivid from all angles to increase viewer engagement.

Striking Images in Any Light

Anti-Glare Panels and High Contrast Ratio

The VMB-U series features anti-glare panels that evenly distribute light across the screen, ensuring that content is displayed with vivid and accurate imagery. The high contrast ratio and 24/7 operational support make these displays vibrant and attention-grabbing in any environment, day or night. Your content will always look its best, regardless of ambient lighting.

Image Enhancement

Powerful Picture Enhancement Technology

Samsung’s powerful picture enhancement technology ensures that all content is vibrant and clear. The Picture Enhancement mode increases color saturation and contrast, and gamma curve adjustments make content look better. The Black Equalizer mode brightens dark images, making details easier to see. These features guarantee that visuals on your screen are always of the highest quality.

Comprehensive Calibration to Suit Your Needs

Multi-Step Factory Calibration and Advanced Calibration Tools

The VMB-U series displays are factory-calibrated with multiple steps to achieve uniform brightness and color. Users can also make fine adjustments using the advanced settings with the free Color Expert Pro software. This software allows for precise calibration, and the Color Expert Pro Mobile app enables quick and easy white balance adjustments for 5x5 sized screens using a smartphone camera, making calibration much simpler.

Enhanced Presentation, Simplified Operation

Daisy Chain Design with DisplayPort 1.2 and HDMI Ports

The VMB-U series supports a daisy chain design via DisplayPort 1.2 or HDMI ports, allowing UHD content to be displayed across multiple screens without the need for an external graphics card. Samsung's UHD Signage Player Box combines a media player with content management software, providing functional convenience. This makes your display more efficient and user-friendly.

Durable and User-Friendly Design

Dust-Resistant IP5X Certification and Centralized IR Receiver

The VMB-U series is dust-resistant with an IP5X certification, making it durable in dusty environments without requiring additional enclosures. The centrally located embedded infrared (IR) receiver allows for easier and more flexible control of the display. These features enhance the reliability of the display and ensure long-lasting performance.

TECHNICAL SPECIFICATIONS

• Diagonal Size: 55"
• Panel Type: IPS
• Resolution: 1,920 x 1,080
• Pixel Pitch (HxV): 0.63x0.63 mm
• Brightness (Typical): Max 500 nits
• Contrast Ratio: 1,200:1
• Viewing Angle (H/V): 178/178
• Response Time: 8 ms
• Color Gamut: 72%
• Haze: 25%
• H-Scanning Frequency: 62.7~72.3 kHz
• Maximum Pixel Frequency: 82 MHz
• V-Scanning Frequency: 57~63 Hz
• Dynamic Contrast Ratio: 45,000:1
• Operational Support: 24/7

CONNECTIONS

• HDMI Input: 2
• DP Input: 1
• DVI Input: 1
• HDMI Version: 2
• DP Version: 1.2
• HDCP Version: 2.2
• USB: 1
• IR Input: Yes
• Audio Input: Yes
• Audio Output: Stereo Mini Jack
• Video Output: Yes
• Power Output: No
• RS232 Input: Yes
• RS232 Output: Yes
• RJ45 Input: Yes

POWER

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 220W
• Power Consumption (Sleep Mode): 0.5W

DIMENSIONS

• Set Dimensions (WxHxD): 1213.5x684.3x73.13 mm
• Package Dimensions (WxHxD): 1398x844x257 mm

Samsung's VMB-U series is a powerful and durable display solution designed to deliver a superior visual experience for your business. With its sleek design, high brightness capability, and advanced image enhancement features, your displays will always perform at their best.
